Description

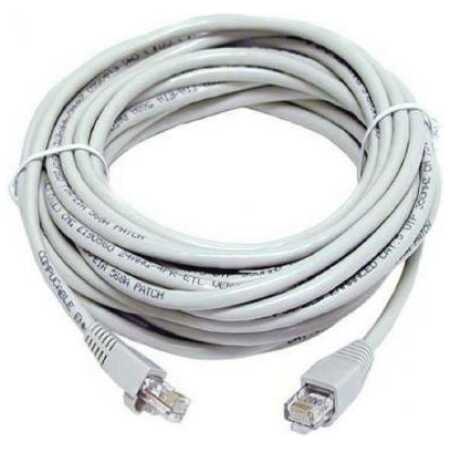

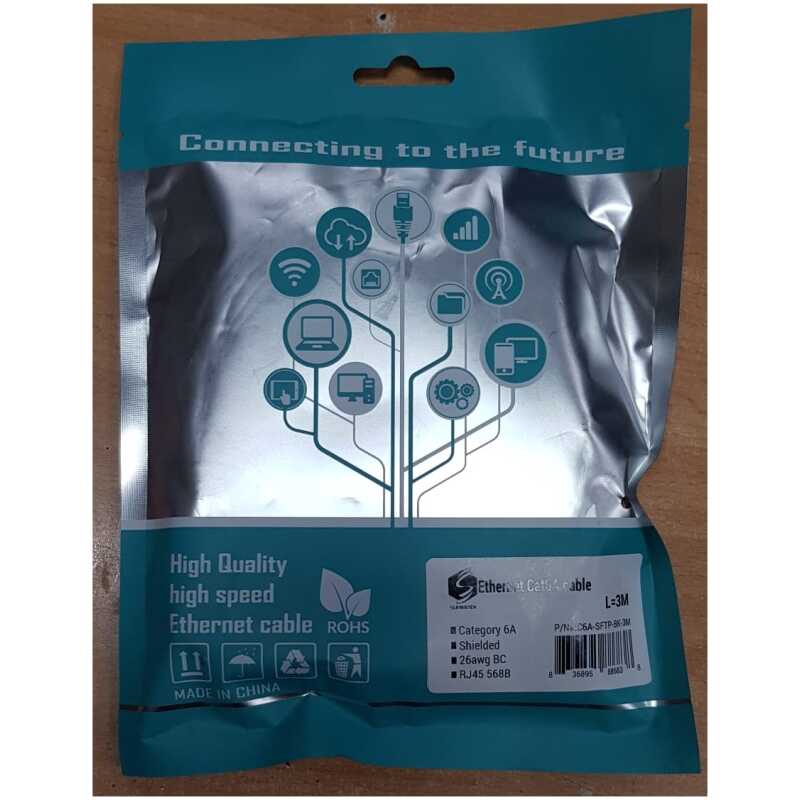

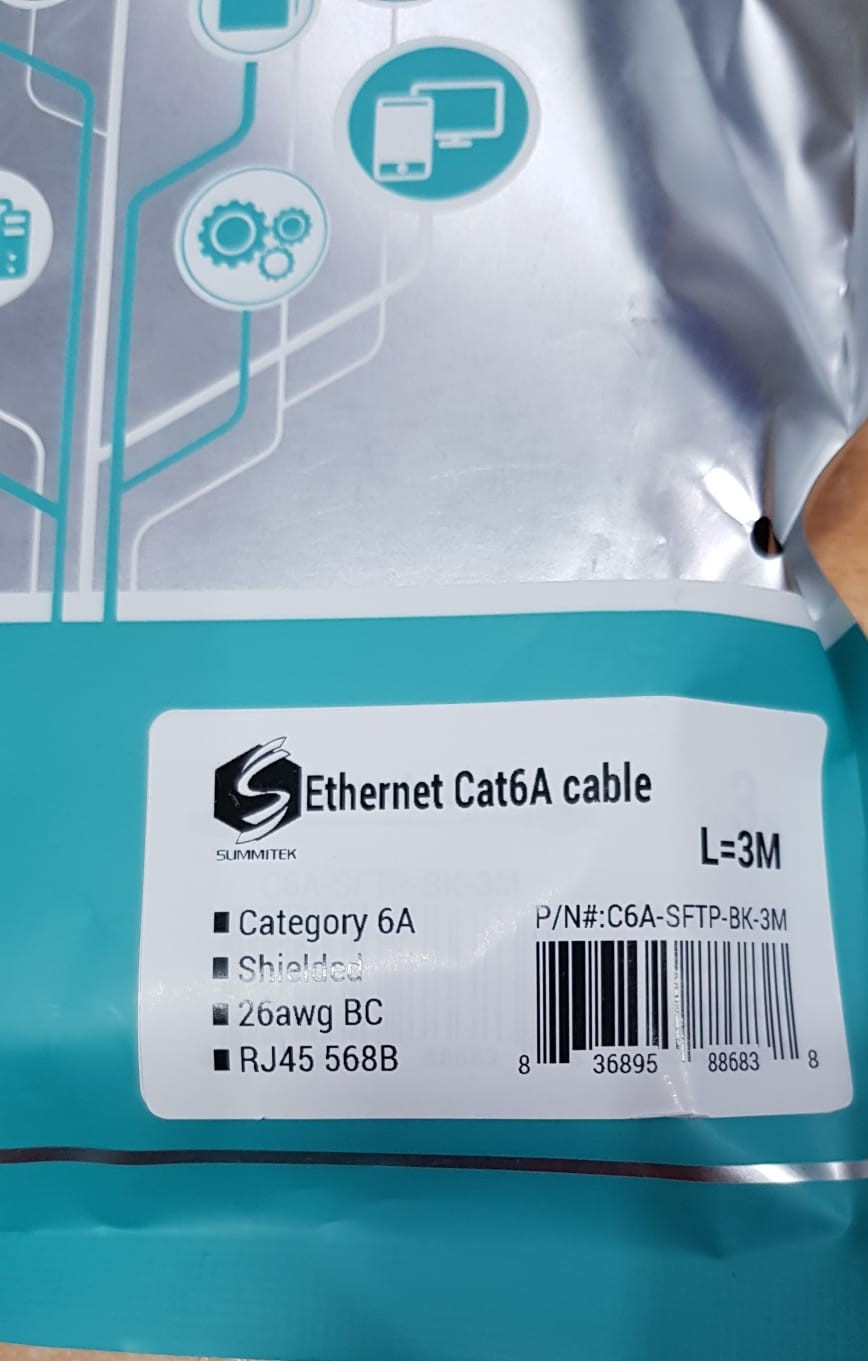

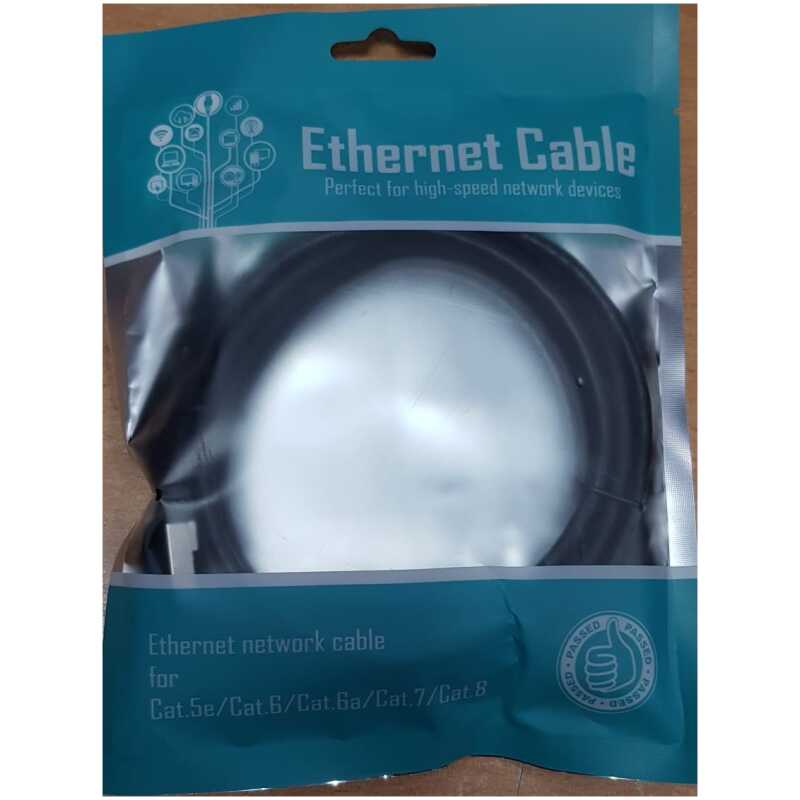

SUMMITEK – CAT6A 1M, 2M, 3M, 5M & 10M
SUMMITEK – CAT6A 1M, 2M, 3M, 5M & 10M
Availability: In Stock
Quick Comparison
| Settings | SUMMITEK - CAT6A 1M, 2M, 3M, 5M & 10M remove | SCHNEIDER CAT6 UTP CABLE ROLL 305M remove | JAMATECH CAT6 CABLE ROLL 305M remove | Kico Patch Cord - CAT6 30M remove | 42U CABINET remove | 9U CABINET remove | ||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Image |  |  |  |  |  |  | ||||||||||||||||
| SKU | NHFL1 | NHFL1-1 | ||||||||||||||||||||
| Rating | ||||||||||||||||||||||
| Price | ||||||||||||||||||||||
| Stock | ||||||||||||||||||||||
| Availability | ||||||||||||||||||||||
| Add to cart | ||||||||||||||||||||||
| Description | The Schneider Electric Cat6 cable consists of 100-Ohm impedance, 4 unshielded twisted pairs for horizontal installations in local area networks (LANs). The cable meets and exceeds Category 6 / Class E performance | Item Spotlights Pure Bare Copper Transmit Faster while Lasting the Distance than CCA
Tangle and Twist-free Packaging
Marked Every 1m (3.28ft) on Cable Makes Measuring Easy
Support PoE, PoE+ and PoE++ (IEEE 802.3af/at/bt)
CE, Reach, RoHS Certified
CMR Rated (Riser) for Use in between Floors, in-Wall, and Non-plenum Spaces
Tested with a Fluke DSX-8000 Versiv CableAnalyzer
| ||||||||||||||||||||
| Content | SUMMITEK - CAT6A 1M, 2M, 3M, 5M & 10M |
SPECIFICATION
| Cat6 Ethernet Bulk Cable, 1000ft (305m), 23AWG Solid Pure Bare Copper Wire, 550MHz, Shielded (SF/UTP), PVC CMR (Blue)Cat6 Bulk Ethernet Network Cable SF/UTP, Solid, PVC CMR, 23AWGThe next step up from standard Cat5e cable, Cat6 is a "twisted pair" network cable used for 1000Base-T Ethernet applications at speed of up to 550MHz of bandwidth. This cable is preferred for more advanced networking installations where a higher bandwidth than normal is required. Description
Cable Type
Category 6
Shielding Type
SF/UTP
Cable Jacket
PVC CMR
Cable Length
1000ft (305m)
Reference Bandwidth
550MHz
Data Rate Support
10/100/1000Base-T
Wire Gauge
23AWG
Conductor Type
Pure Bare Copper Wire
Conductor Diameter (mm)
0.565 ± 0.005
Cable Outer Diameter (mm)
7.80 ± 0.40
Maximum Installation Tension (N)
110
Bend Radius (mm)
32.8
Cable Color
Blue
Standard
ISO/IEC 11801, ANSI/TIA-568-C.2
Operating Temperature
-20 to +75°C (-4 to 167°F)
Installation Temperature
-10 to +50°C (-14 to 122°F)

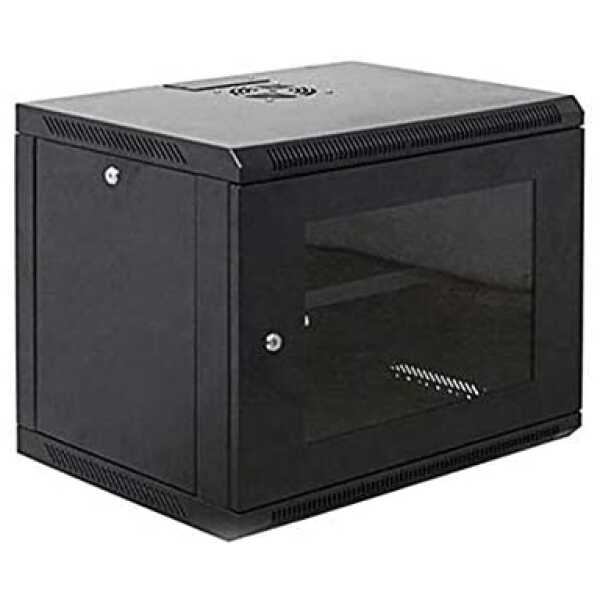

| Kico Patch Cord - CAT6 30M | 42U CABINET 800X1000 | 9U CABINET 600X450 9U CABINET 600X600 | ||||||||||||||||
| Weight | 15 | 15 | ||||||||||||||||||||
| Dimensions | N/A | 124 × 451 × 215 cm | 124 × 451 × 215 cm | N/A | N/A | N/A | ||||||||||||||||
| Additional information |
|
|
